LED-Scheinwerfereinsatz , AREA , 5-3/4" , schwar , Ø=143mm , Klarglas ,E-geprüft
LED-Scheinwerfereinsatz , AREA , 5-3/4" , schwar , Ø=143mm , Klarglas ,E-geprüft

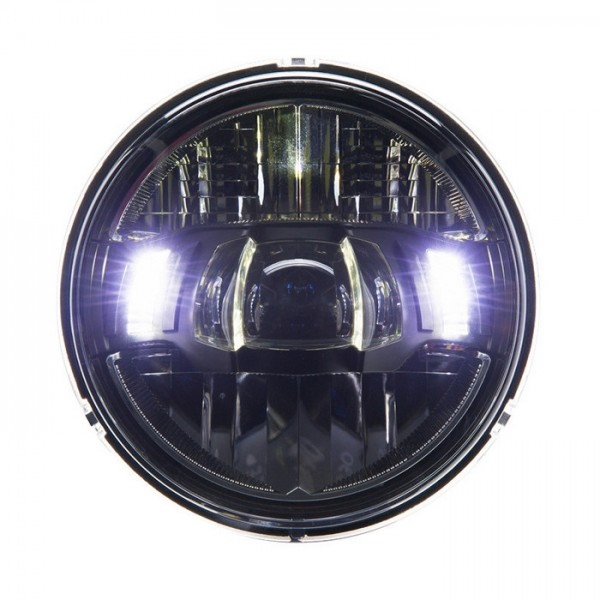

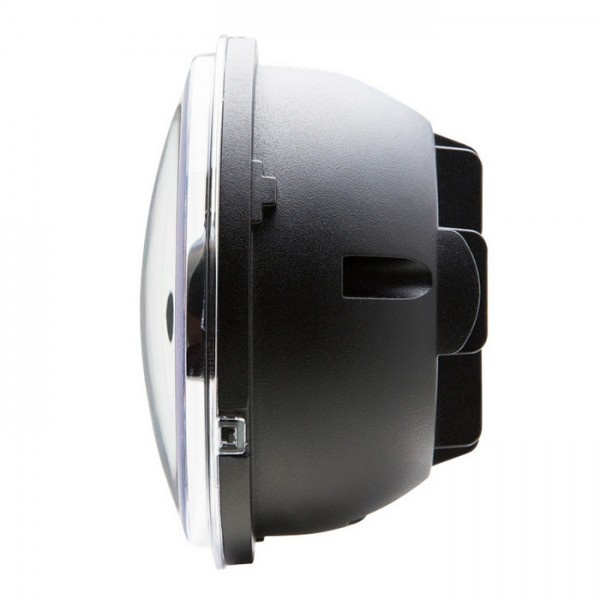

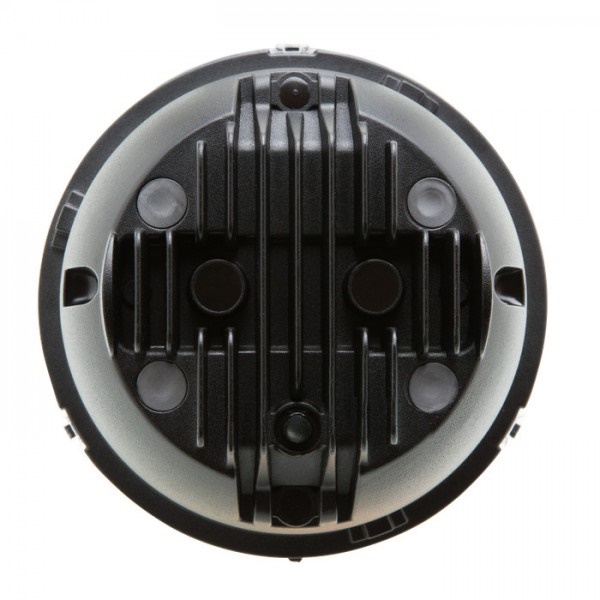

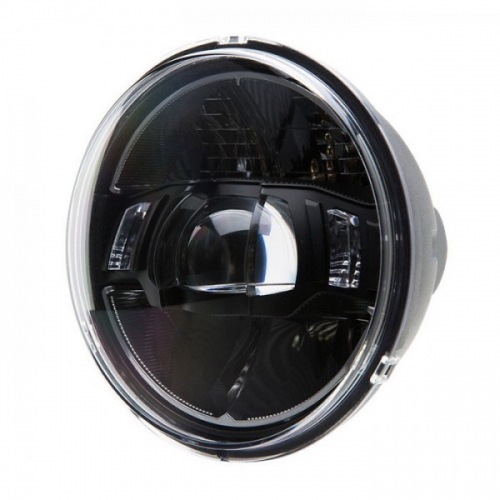

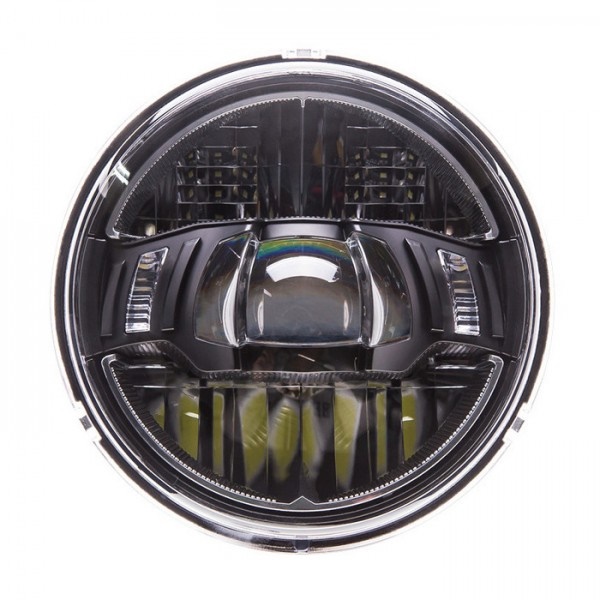

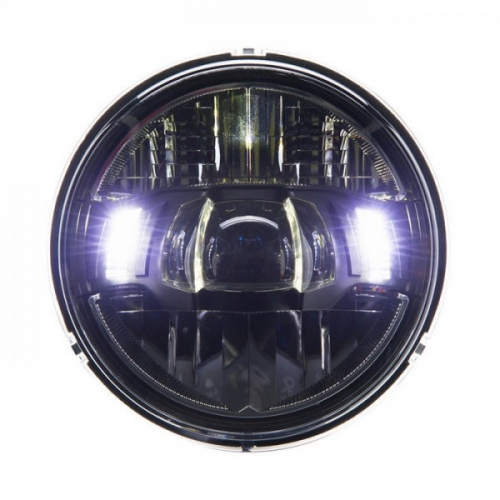

LED-Scheinwerfereinsatz AREA 5-3/4"
- 12V/24V DC
- Low beam: 3pcs x 2chip LEDs
- High beam: 4pcs x 2chip LEDs
- Front position light: 2pcs LEDs
- All Nichia automotive grade LEDs
- PC lens with hard coating
- Die cast aluminum heat sink and housing
- Electromagnetic compliance
- ECE compliant
- Rating: 12V/24V DC Multi-Voltage
- Light Source:
- Low beam- 3pcs x 8.5W Nichia Automotive grade LEDs (1950 lumens)
- High beam- 4pcs x 8.5W Nichia Automotive grade LEDs (2600 lumens)
- Front position light: 2pcs x 1W LEDs (200 lumens)
- Power:
- LOW - 1.88A / 22.56W @12V
- HIGH- 2.59A / 31.08W @12V
- POSITION- 0.19A / 2.28W @12V
- Vibration: 7G
- Corrosion Resistance: 240 hrs
- Ingress: IP67
- Hard coated polycarbonate lens
- PMMA inner lens
- Die cast aluminum housing with E-coat and powder coating
- Electromagnetic compliance
- Surge protected
- Reverse voltage protection
- DOT/ECE R112 Compliant
